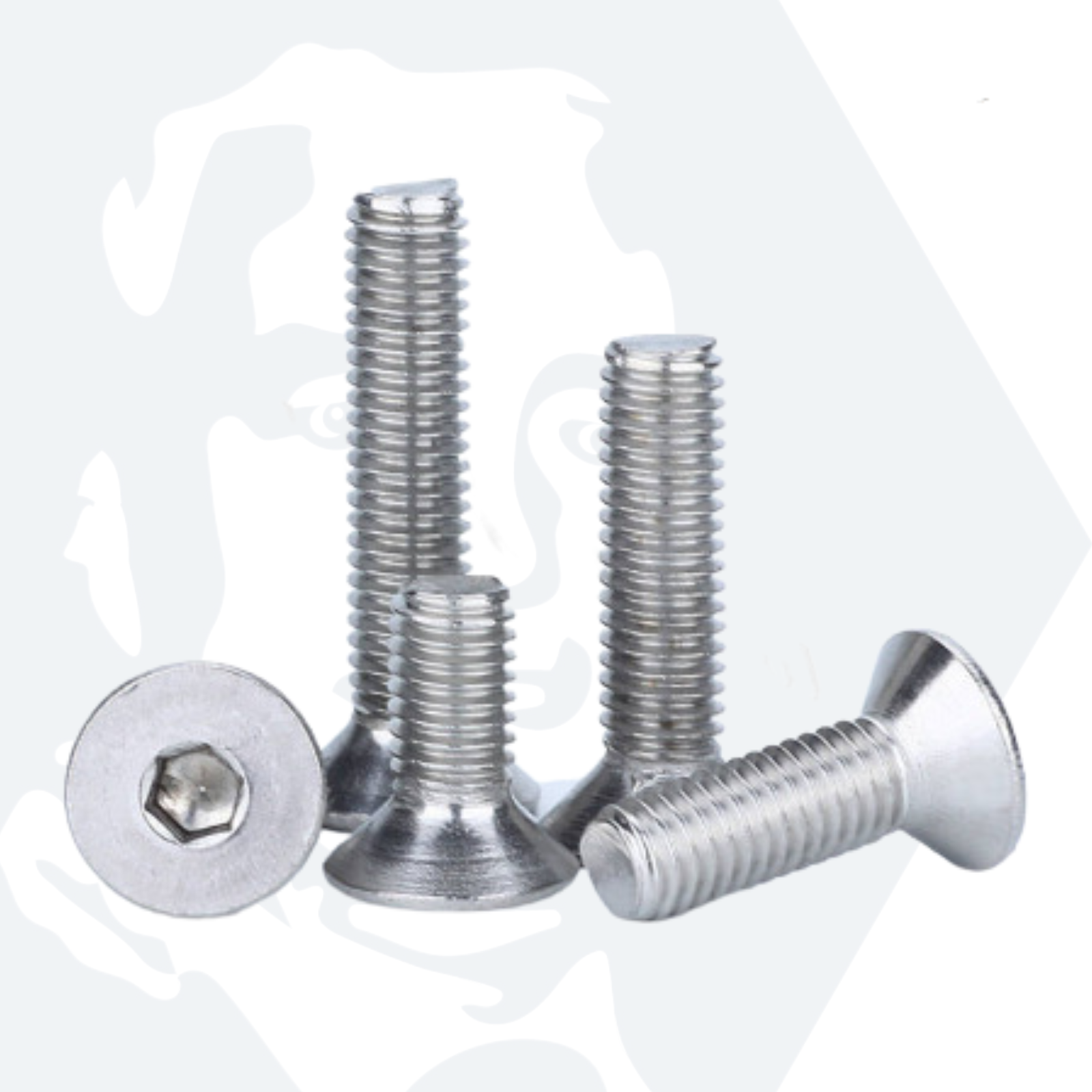

Description
| Material | Stainless Steel (A2) |
| Finish | Natural |
| Manufacturing Standard | DIN 7991 |
| Screw Thread Pitch | 1.5mm |
| Thread | M10 (10mm), Right Hand Thread |
| Countersunk Angle (CA) | 90 Degrees |
| Head Length [Max] (H) | 6.2mm |
| Head Diameter [Max] (D) | 22.4mm |
| Head Diameter [Min] (D) | 19.22mm |
| Hexagon Across Flats / Allen Key Size (J) |
6mm |
| Hexagon Depth (P) |
3.6mm |
