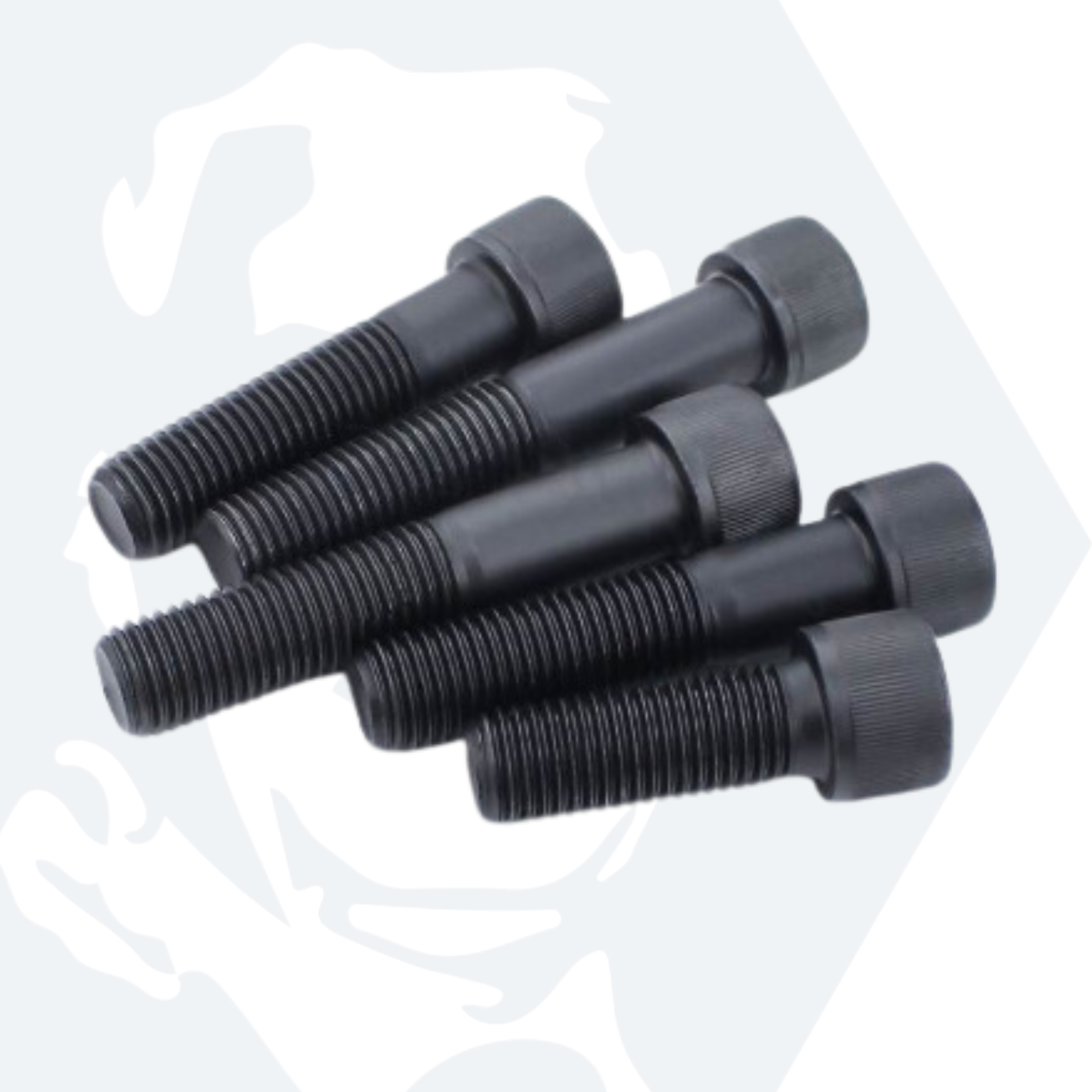

Description
| Material | Stainless Steel (A2) |
| Finish | CB10 |
| Manufacturing Standard | DIN 912 |
| Screw Thread Pitch | 0.8mm |
| Thread | M5 (5mm), Right Hand Thread |
| Socket / Allen Key Size (J) | 4mm |
| Head Diameter [Max] (D) | 8.5mm |
| Head Diameter (D) Tolerance | +0/-0.22mm |
| Head Length [Max] (H) | 5mm |
| Head Length (H) Tolerance | +0/-0.18mm |
| Hexagon Depth (P) | 2.5mm |
