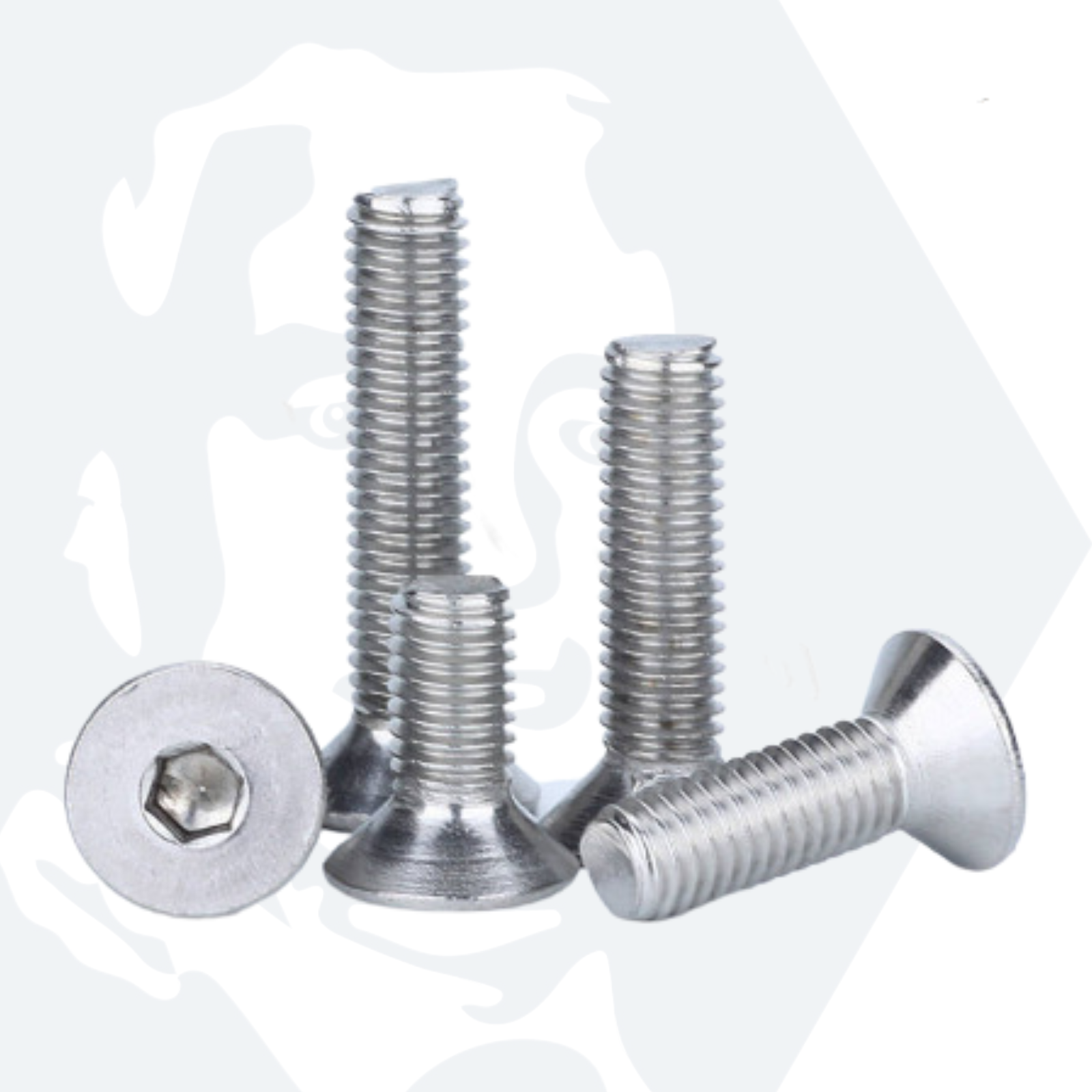

Description
| Material | Stainless Steel (A2) |
| Finish | Natural |
| Manufacturing Standard | DIN 7991 |
| Screw Thread Pitch | 1.25mm |
| Thread | M8 (8mm), Right Hand Thread |
| Countersunk Angle (CA) | 90 Degrees |
| Head Length [Max] (H) | 4.96mm |
| Head Diameter [Max] (D) | 17.92mm |
| Head Diameter [Min] (D) | 15.24mm |
| Hexagon Across Flats / Allen Key Size (J) |
5mm |
| Hexagon Depth (P) |
3mm |
